Eltech manufactures and exports Corona surface treatment machine for pp flute board for better printing in Mumbai India.
Compared to Sun board, which is brittle, which breaks easily, PP flute board is durable and does not crack. Ink on Sun board fades over time and leads to dull prints. With its CORONA treatment, the prints on PP Flute always stay vibrant.
Eltech corona discharge surface treatment equipment creates powerful bonding for printing, painting, coating,laminating and adhesion applications. Our technology is uniquely designed to treat 2-dimensional films, as well as many other applications requiring Improved surface energy and long-lasting activation.
The corona surface treatment equipment is a very effective way to increase the surface tension of virtually any material. Corona Surface treatment is required for plastic films whose normal surface tension is not sufficiently high to permit good wetting by flexo graphic inks.
High-frequency corona surface treatment system increases the surface tension of any plastic material respective to inks by inducing molecular changes in the surface of the films. This is done by exposing the air at the material's surface to a high-voltage electrical discharge - Corona.
PP Flute sheet is the preferred material choice across multiple industries for its lightweight structure and competitive pricing and is widely recognized as being a far more durable alternative to corrugated sheet box, low weight than metal and both chemical and water resistant and affordable too because it is recyclable.

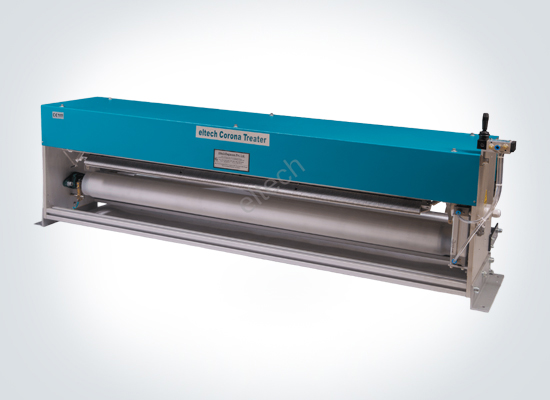

Corona Treater for PP Flute Board

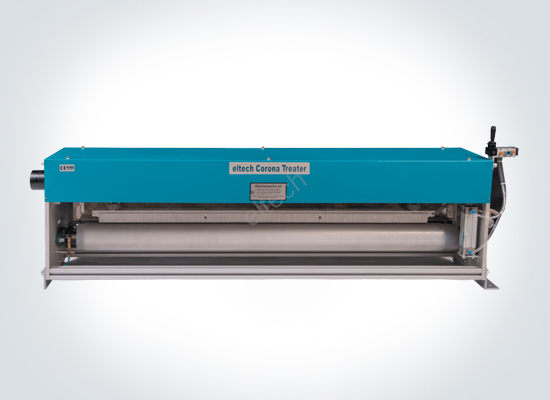

Corona Treater for PP Flute Board
High Frequency Corona Panel
Blower
Features of Corona Treater For PP Flute Board :
- Aluminium Split box type station assembly for light weight and low corrosion.
- Advanced IGBT Technology.
- Ozone extraction system efficiently removes ozone and to cool the electrodes. This reduces warping of electrode and provides more consistent.
- Pnuematic operated treatment station.
- Easy to install.
- In order to protect the Treater rolls, a zero speed cut-off system automatically shuts down the power supply when the web achieves low line speeds.
- Cost efficient treatment process.
- Easy to Operate Push Buttons for Start/Stop
- Easy to maintain.
- Air gap adjustment: two external adjustment screws at both ends of the electrodes.
- Easy view windows allow clear unobstructed view of corona discharge.
- Customized Design.
- Compact simple contruction
- Ultra high frequency using latest IGBT technology
- Soft start
- Forced cooled convertor for longer life
- Maximum Operator safety
- Thermal trip for heatsink
- Overload Trip
- Under voltage / Over voltage
- MCB protection
- Single Phasing
- Ozone extraction overload trip
- Audio / visual alarm
- Door open
