Conventional method of roll to roll treatment is standard practice, but in Offset, Sheet corona treatment is required to increase surface tension or improve the printability. Some substrates are corona-treaterd when they are manufactured. Many of these substrates require a surface energy boost to match a particular ink or coating. This is done with corona preTreaters on the press just prior tbro the coating application point.
PVC, PP, LD, Foam, Flex, metallized polyester, PE, OPP and other high-low density plastic materials should particularly be Corona Treaterd to enhance the quality of the final product.

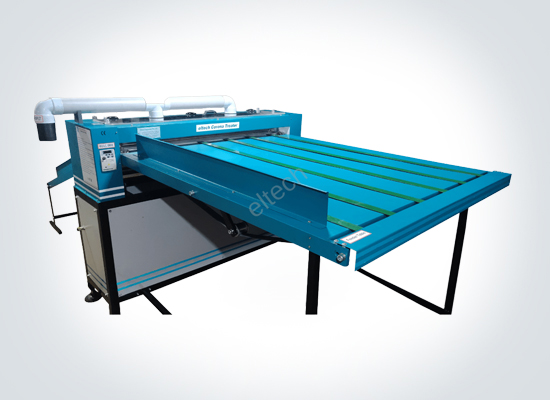

Sheet Corona Treater

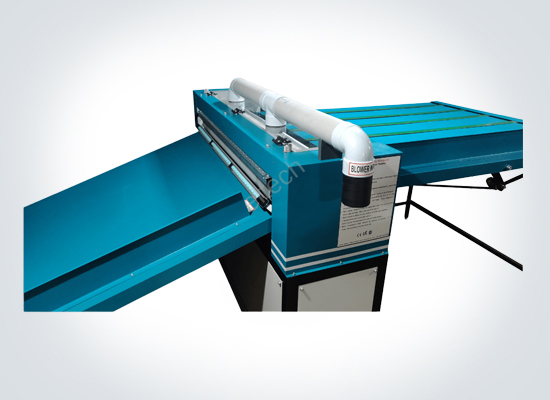

Sheet Corona Treater
High Frequency Corona Panel
Ozone Extraction Blower
Specifications of Sheet Corona Treater :
| Mains Supply / Mains Frequency | 415 V AC , ? 5 % , 3 Phase, 4 -Wire |
| Treatment size | 600-1500 mm |
| Line speed | 40 sheets/min |
| Material | PP, PE, PVC, PVDA, PMMA, PS and other non-conductive polymers / conductive |
| Treating sides | Single |
| Input frequency | 50 Hz |
| Output frequency | 20-50 KHZ |
| Approx Output power (Kw) | 1 KW |
| Maximum temperature | 0 ~ 50?C |
| Blower | 3 H.P |
| Treatment electrode | Insulated Silicone roller |
| Dynes level | 38-48 Dynes/cm |
| Length of HV cable | 2.5 Mtr |
| Inverter | Ultra high frequency using latest IGBT technology |
| Corona output | Constant at same speed No influence of supply voltage Accurate output power |
| Certifications | CE, RoHs, ISO |
Features of Sheet Corona Treater :
- Aluminium Split box type station assembly for light weight and low corrosion.
- Advanced IGBT Technology.
- Ozone extraction system efficiently removes ozone and to cool the electrodes. This reduces warping of electrode and provides more consistent.
- Pnuematic operated treatment station.
- Easy to install.
- In order to protect the Treater rolls, a zero speed cut-off system automatically shuts down the power supply when the web achieves low line speeds.
- Cost efficient treatment process.
- Easy to Operate Push Buttons for Start/Stop
- Easy to maintain.
- Air gap adjustment: two external adjustment screws at both ends of the electrodes.
- Easy view windows allow clear unobstructed view of corona discharge.
- Customized Design.
- Compact simple contruction
- Ultra high frequency using latest IGBT technology
- Soft start
- Forced cooled convertor for longer life
- Maximum Operator safety
- Thermal trip for heatsink
- Overload Trip
- Under voltage / Over voltage
- MCB protection
- Single Phasing
- Ozone extraction overload trip
- Audio / visual alarm
- Door open
